Protein Data Bank Entry:

PDB ID : 1qrs

Resolution :2.600 Å

Experimental Method : X-ray

Deposition Date : 1996-06-14

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Glutamine--tRNA ligase
ID:	SYQ_ECOLI
AC:	P00962
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	6.1.1.18

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	12.536
Number of residues:	34
Including
Standard Amino Acids:	34
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.216	702.000

% Hydrophobic	% Polar
36.06	63.94
According to VolSite

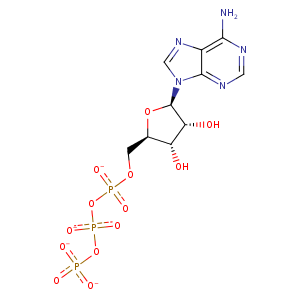

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	60.58 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
44.8574	26.6683	17.1024

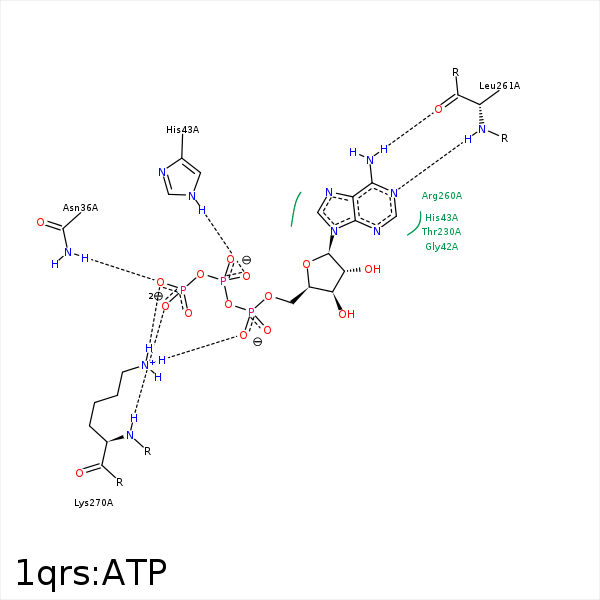

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CE1	PHE- 31	3.92	0	Hydrophobic	false
C5'	CB	PRO- 33	4.1	0	Hydrophobic	false
O1A	N	GLU- 34	3.25	138.46	H-Bond (Protein Donor)	false
O3G	ND2	ASN- 36	3.17	151.08	H-Bond (Protein Donor)	false
O1B	NE2	HIS- 43	2.82	138.75	H-Bond (Protein Donor)	false
O2A	NE2	HIS- 43	3.16	127.67	H-Bond (Protein Donor)	false
O5'	NE2	HIS- 43	3.43	122.32	H-Bond (Protein Donor)	false
O2'	OG	SER- 46	3.41	133.12	H-Bond (Protein Donor)	false
C1'	CB	SER- 46	3.89	0	Hydrophobic	false
C2'	CG2	THR- 230	4.19	0	Hydrophobic	false
N6	O	LEU- 261	3.11	167.2	H-Bond (Ligand Donor)	false
N1	N	LEU- 261	2.83	170.89	H-Bond (Protein Donor)	false
O2G	N	LYS- 270	3.03	154.5	H-Bond (Protein Donor)	false
O3G	NZ	LYS- 270	2.77	141.65	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 270	2.61	152.88	H-Bond (Protein Donor)	false
O3G	NZ	LYS- 270	2.77	0	Ionic (Protein Cationic)	false
O1B	NZ	LYS- 270	3.32	0	Ionic (Protein Cationic)	false
O2A	NZ	LYS- 270	2.61	0	Ionic (Protein Cationic)	false
