scPDB - 1pke entry

Protein Data Bank Entry:

PDB ID : 1pke

Resolution :2.300 Å

Experimental Method : X-ray

Deposition Date : 2003-06-05

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Purine nucleoside phosphorylase DeoD-type
ID:	DEOD_ECO57
AC:	P0ABP9
Organism:	Escherichia coli O157:H7
Reign:	Bacteria
TaxID:	83334
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
C	100 %

Ligand binding site composition:

B-Factor:	23.793
Number of residues:	27
Including
Standard Amino Acids:	27
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.620	634.500

% Hydrophobic	% Polar
48.94	51.06
According to VolSite

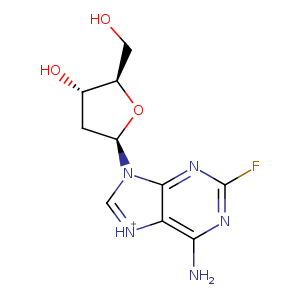

Ligand :

HET Code:	2FD
Formula:	C10H12FN5O3
Molecular weight:	269.232 g/mol
DrugBank ID:	DB02947
Buried Surface Area:	63.88 %
Polar Surface area:	119.31 Å2

Number of
H-Bond Acceptors:	7
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
52.1127	51.5158	28.1426

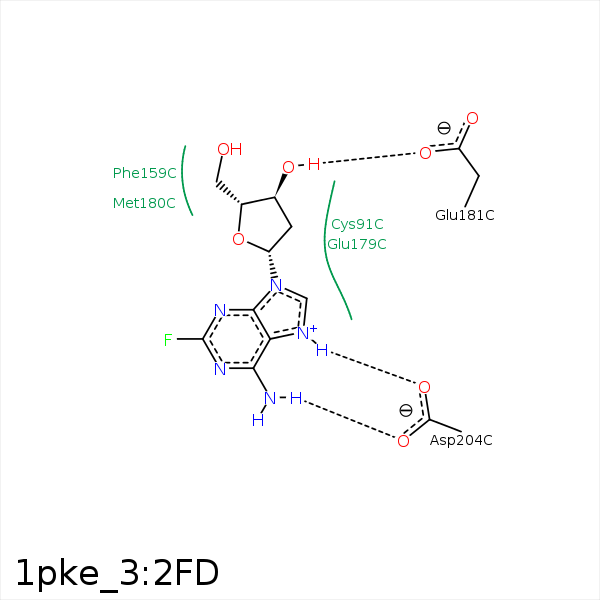

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C3'	CG	MET- 64	4.4	0	Hydrophobic	false
C5'	SD	MET- 64	3.86	0	Hydrophobic	false
F	CB	ALA- 156	3.93	0	Hydrophobic	false
C5'	CD2	PHE- 159	3.67	0	Hydrophobic	false
F	CD2	PHE- 159	3.93	0	Hydrophobic	false
F	CG1	VAL- 178	3.84	0	Hydrophobic	false
C2'	CB	GLU- 179	3.92	0	Hydrophobic	false
F	CG	MET- 180	3.33	0	Hydrophobic	false
C2'	CG	MET- 180	4.22	0	Hydrophobic	false
C3'	SD	MET- 180	3.85	0	Hydrophobic	false
O3'	OE2	GLU- 181	2.61	153.28	H-Bond (Ligand Donor)	false
N6	OD2	ASP- 204	3.26	154.31	H-Bond (Ligand Donor)	false
