scPDB - 1pjk entry

Protein Data Bank Entry:

PDB ID : 1pjk

Resolution :2.500 Å

Experimental Method : X-ray

Deposition Date : 2003-06-03

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Casein kinase II subunit alpha
ID:	CSK21_HUMAN
AC:	P68400
Organism:	Homo sapiens
Reign:	Eukaryota
TaxID:	9606
EC Number:	2.7.11.1

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	15.024
Number of residues:	31
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.110	749.250

% Hydrophobic	% Polar
50.45	49.55
According to VolSite

Ligand :

HET Code:	ANP
Formula:	C10H13N6O12P3
Molecular weight:	502.164 g/mol
DrugBank ID:	-
Buried Surface Area:	49.77 %
Polar Surface area:	322.68 Å2

Number of
H-Bond Acceptors:	16
H-Bond Donors:	4
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
16.7042	-54.5229	-42.6917

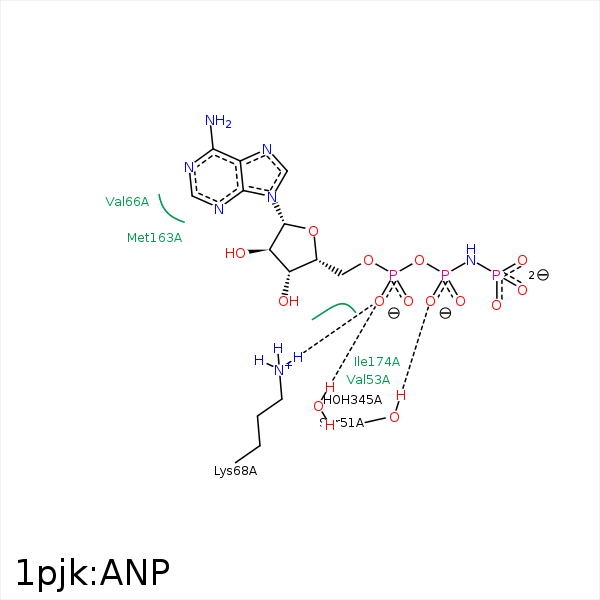

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3G	N	LYS- 49	3.38	138.2	H-Bond (Protein Donor)	false
O1B	OG	SER- 51	2.67	145.05	H-Bond (Protein Donor)	false
C1'	CG1	VAL- 53	3.78	0	Hydrophobic	false
O1A	NZ	LYS- 68	3.17	160.25	H-Bond (Protein Donor)	false
O1A	NZ	LYS- 68	3.17	0	Ionic (Protein Cationic)	false
N6	O	GLU- 114	3.34	124.17	H-Bond (Ligand Donor)	false
C3'	CE	MET- 163	3.84	0	Hydrophobic	false
C2'	SD	MET- 163	4.31	0	Hydrophobic	false
C5'	CD1	ILE- 174	3.92	0	Hydrophobic	false
C3'	CD1	ILE- 174	4.31	0	Hydrophobic	false
O1A	O	HOH- 345	2.67	179.99	H-Bond (Protein Donor)	false
