scPDB - 1p84 entry

Protein Data Bank Entry:

PDB ID : 1p84

Resolution :2.500 Å

Experimental Method : X-ray

Deposition Date : 2003-05-06

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Cytochrome b
ID:	CYB_YEAST
AC:	P00163
Organism:	Saccharomyces cerevisiae
Reign:	Eukaryota
TaxID:	559292
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
C	95 %
E	5 %

Ligand binding site composition:

B-Factor:	34.892
Number of residues:	41
Including
Standard Amino Acids:	38
Non Standard Amino Acids:	1
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.848	378.000

% Hydrophobic	% Polar
50.89	49.11
According to VolSite

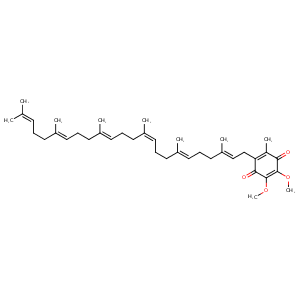

Ligand :

HET Code:	UQ6
Formula:	C39H60O4
Molecular weight:	592.891 g/mol
DrugBank ID:	-
Buried Surface Area:	33.36 %
Polar Surface area:	58.92 Å2

Number of
H-Bond Acceptors:	4
H-Bond Donors:	2
Rings:	1
Aromatic rings:	1
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	19

Mass center Coordinates

X	Y	Z
-9.93674	54.7467	4.64565

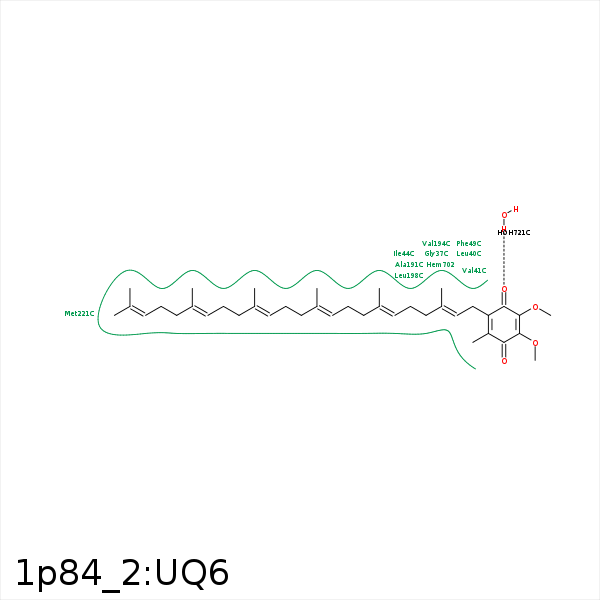

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3	NE2	GLN- 22	3.44	121.66	H-Bond (Protein Donor)	false
C4M	CG	GLN- 22	4.37	0	Hydrophobic	false
C4M	CD1	ILE- 26	3.57	0	Hydrophobic	false
C7	CB	SER- 34	4.16	0	Hydrophobic	false
C20	CG	LEU- 40	3.98	0	Hydrophobic	false
C20	CG2	VAL- 41	4.32	0	Hydrophobic	false
C20	CD1	ILE- 44	3.26	0	Hydrophobic	false
C27	CG2	ILE- 44	4.33	0	Hydrophobic	false
C27	CG2	VAL- 45	4.38	0	Hydrophobic	false
C35	CZ	PHE- 49	4.34	0	Hydrophobic	false
C36	CE	MET- 52	4.14	0	Hydrophobic	false
C36	SD	MET- 82	4.28	0	Hydrophobic	false
C25	CE2	PHE- 188	4.01	0	Hydrophobic	false
C1M	CD2	LEU- 198	4.34	0	Hydrophobic	false
C12	CD1	LEU- 198	4.21	0	Hydrophobic	false
C15	CD1	LEU- 198	4.35	0	Hydrophobic	false
C3M	CD2	LEU- 201	3.5	0	Hydrophobic	false
C3M	CB	SER- 206	4.16	0	Hydrophobic	false
C1M	CE	MET- 221	4.17	0	Hydrophobic	false
C7	CE	MET- 221	4.48	0	Hydrophobic	false
O5	O	HOH- 721	3.08	137.45	H-Bond (Protein Donor)	false
