scPDB - 1ot3 entry

Protein Data Bank Entry:

PDB ID : 1ot3

Resolution :2.500 Å

Experimental Method : X-ray

Deposition Date : 2003-03-21

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Deoxynucleoside kinase
ID:	DNK_DROME
AC:	Q9XZT6
Organism:	Drosophila melanogaster
Reign:	Eukaryota
TaxID:	7227
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
H	100 %

Ligand binding site composition:

B-Factor:	30.044
Number of residues:	30
Including
Standard Amino Acids:	29
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.322	243.000

% Hydrophobic	% Polar
59.72	40.28
According to VolSite

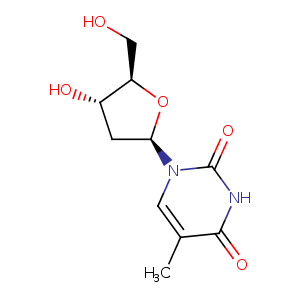

Ligand :

HET Code:	THM
Formula:	C10H14N2O5
Molecular weight:	242.229 g/mol
DrugBank ID:	DB04485
Buried Surface Area:	76.51 %
Polar Surface area:	99.1 Å2

Number of
H-Bond Acceptors:	5
H-Bond Donors:	3
Rings:	2
Aromatic rings:	0
Anionic atoms:	0
Cationic atoms:	0
Rule of Five Violation:	0
Rotatable Bonds:	2

Mass center Coordinates

X	Y	Z
44.3912	73.8564	213.345

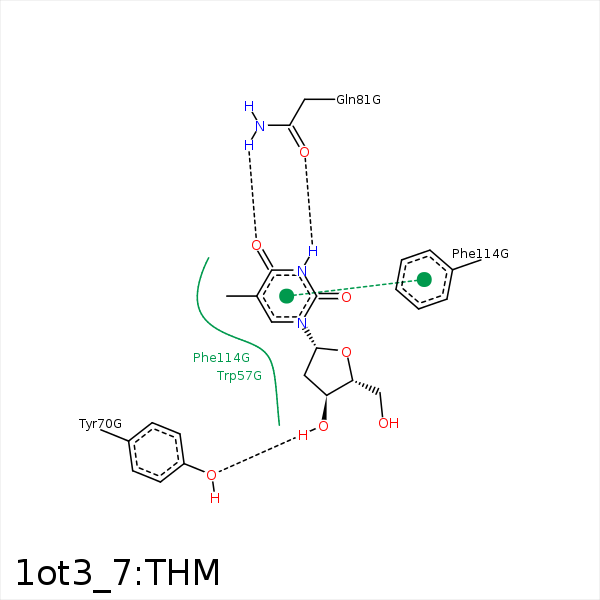

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C2'	CD1	ILE- 29	4.03	0	Hydrophobic	false
O5'	OE1	GLU- 52	3.22	137.23	H-Bond (Ligand Donor)	false
C5'	CG2	VAL- 54	4.15	0	Hydrophobic	false
C5M	CH2	TRP- 57	4.05	0	Hydrophobic	false
C5'	CZ3	TRP- 57	3.71	0	Hydrophobic	false
C4'	CD1	LEU- 66	4.38	0	Hydrophobic	false
O3'	OH	TYR- 70	2.83	169.62	H-Bond (Ligand Donor)	false
N3	OE1	GLN- 81	2.83	156.59	H-Bond (Ligand Donor)	false
O4	NE2	GLN- 81	3.06	167.71	H-Bond (Protein Donor)	false
C5M	CG1	VAL- 84	4.16	0	Hydrophobic	false
C5M	CD	ARG- 105	4.04	0	Hydrophobic	false
C5M	CE1	PHE- 114	4.04	0	Hydrophobic	false
C2'	CE2	PHE- 114	3.92	0	Hydrophobic	false
