scPDB - 1oqc entry

Protein Data Bank Entry:

PDB ID : 1oqc

Resolution :1.800 Å

Experimental Method : X-ray

Deposition Date : 2003-03-07

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	FAD-linked sulfhydryl oxidase ALR
ID:	ALR_RAT
AC:	Q63042
Organism:	Rattus norvegicus
Reign:	Eukaryota
TaxID:	10116
EC Number:	1.8.3.2

Chains:

Chain Name:	Percentage of Residues within binding site
B	2 %
D	98 %

Ligand binding site composition:

B-Factor:	9.883
Number of residues:	43
Including
Standard Amino Acids:	43
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.663	442.125

% Hydrophobic	% Polar
58.78	41.22
According to VolSite

Ligand :

HET Code:	FAD
Formula:	C27H31N9O15P2
Molecular weight:	783.534 g/mol
DrugBank ID:	DB03147
Buried Surface Area:	66.09 %
Polar Surface area:	381.7 Å2

Number of
H-Bond Acceptors:	22
H-Bond Donors:	7
Rings:	6
Aromatic rings:	3
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	13

Mass center Coordinates

X	Y	Z
23.6787	-6.18683	6.59687

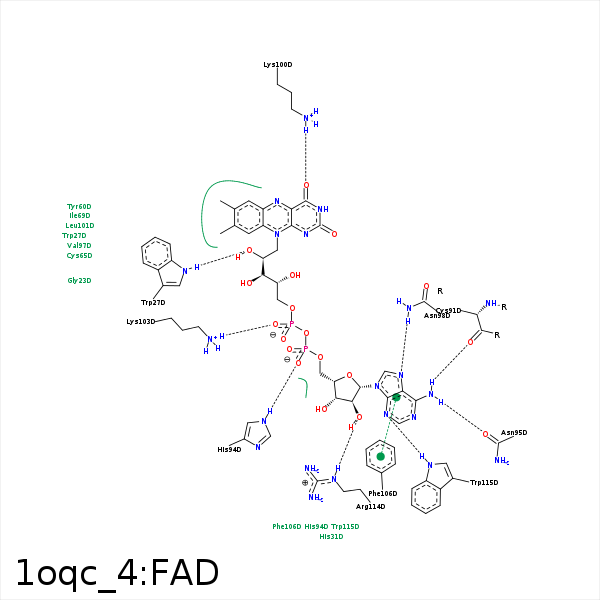

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CG	GLU- 20	4.22	0	Hydrophobic	false
C5'	CB	GLU- 20	4.13	0	Hydrophobic	false
C5B	CB	ARG- 24	4.36	0	Hydrophobic	false
C8M	CG2	THR- 26	3.77	0	Hydrophobic	false
C5B	CB	TRP- 27	4.22	0	Hydrophobic	false
C7M	CH2	TRP- 27	4.35	0	Hydrophobic	false
C8M	CE2	TRP- 27	3.33	0	Hydrophobic	false
O2'	NE1	TRP- 27	2.96	172.08	H-Bond (Protein Donor)	false
C7M	CE2	PHE- 56	3.48	0	Hydrophobic	false
C7M	CD2	TYR- 60	4.06	0	Hydrophobic	false
C8M	CZ	TYR- 60	3.82	0	Hydrophobic	false
C6	CB	CYS- 65	3.61	0	Hydrophobic	false
C9A	SG	CYS- 65	4.09	0	Hydrophobic	false
C7M	CG2	ILE- 69	3.38	0	Hydrophobic	false
N6A	O	CYS- 91	2.84	152.4	H-Bond (Ligand Donor)	false
O2A	NE2	HIS- 94	3.17	162.6	H-Bond (Protein Donor)	false
N6A	OD1	ASN- 95	3.04	122.4	H-Bond (Ligand Donor)	false
C9A	CG1	VAL- 97	4.5	0	Hydrophobic	false
C2'	CG1	VAL- 97	4.46	0	Hydrophobic	false
N7A	ND2	ASN- 98	2.89	163.05	H-Bond (Protein Donor)	false
O4	NZ	LYS- 100	2.83	148.76	H-Bond (Protein Donor)	false
C2'	CD1	LEU- 101	3.68	0	Hydrophobic	false
O1P	NZ	LYS- 103	2.71	146.85	H-Bond (Protein Donor)	false
O1P	NZ	LYS- 103	2.71	0	Ionic (Protein Cationic)	false
DuAr	DuAr	PHE- 106	3.88	0	Aromatic Face/Face	false
C1B	CD2	PHE- 106	4.24	0	Hydrophobic	false
O2B	NE	ARG- 114	2.83	161.34	H-Bond (Protein Donor)	false
C4B	CZ2	TRP- 115	4.14	0	Hydrophobic	false
C1B	CZ2	TRP- 115	3.79	0	Hydrophobic	false
N3A	NE1	TRP- 115	3.04	174.17	H-Bond (Protein Donor)	false
