scPDB - 1njf entry

Protein Data Bank Entry:

PDB ID : 1njf

Resolution :2.300 Å

Experimental Method : X-ray

Deposition Date : 2002-12-30

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	DNA polymerase III subunit tau
ID:	DPO3X_ECOLI
AC:	P06710
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	2.7.7.7

Chains:

Chain Name:	Percentage of Residues within binding site
A	3 %
B	97 %

Ligand binding site composition:

B-Factor:	29.211
Number of residues:	39
Including
Standard Amino Acids:	38
Non Standard Amino Acids:	0
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.688	661.500

% Hydrophobic	% Polar
45.92	54.08
According to VolSite

Ligand :

HET Code:	AGS
Formula:	C10H14N5O12P3S
Molecular weight:	521.231 g/mol
DrugBank ID:	DB02930
Buried Surface Area:	74.88 %
Polar Surface area:	329.24 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	5
Rings:	3
Aromatic rings:	2
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
4.0909	23.6628	14.5498

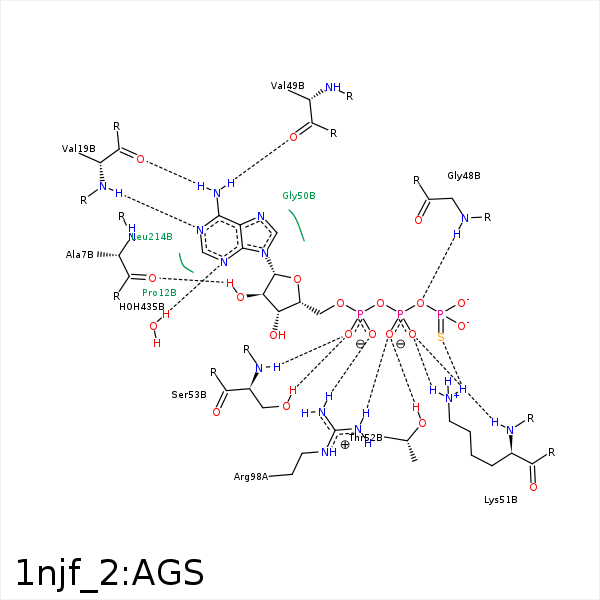

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C4'	CB	ALA- 7	4.48	0	Hydrophobic	false
O2'	O	ALA- 7	2.94	161.15	H-Bond (Ligand Donor)	false
C3'	CG	ARG- 11	4.26	0	Hydrophobic	false
N6	O	VAL- 19	2.82	141.07	H-Bond (Ligand Donor)	false
N1	N	VAL- 19	2.82	175.35	H-Bond (Protein Donor)	false
O2G	N	GLY- 48	3.29	122.19	H-Bond (Protein Donor)	false
O3B	N	GLY- 48	2.59	139.81	H-Bond (Protein Donor)	false
N6	O	VAL- 49	2.96	176.59	H-Bond (Ligand Donor)	false
O2B	N	GLY- 50	3.37	134.64	H-Bond (Protein Donor)	false
O3A	N	GLY- 50	3.49	140.33	H-Bond (Protein Donor)	false
O2B	N	LYS- 51	2.73	153.16	H-Bond (Protein Donor)	false
O2B	NZ	LYS- 51	2.75	156.42	H-Bond (Protein Donor)	false
O2B	NZ	LYS- 51	2.75	0	Ionic (Protein Cationic)	false
O1B	N	THR- 52	3.47	159.28	H-Bond (Protein Donor)	false
O1B	OG1	THR- 52	3.31	161.62	H-Bond (Protein Donor)	false
O1A	N	SER- 53	2.86	141.55	H-Bond (Protein Donor)	false
O1A	OG	SER- 53	2.54	152.8	H-Bond (Protein Donor)	false
O3G	CZ	ARG- 98	2.54	0	Ionic (Protein Cationic)	false
O1B	CZ	ARG- 98	3.47	0	Ionic (Protein Cationic)	false
O2A	CZ	ARG- 98	3.45	0	Ionic (Protein Cationic)	false
O2A	NH1	ARG- 98	2.86	121.73	H-Bond (Protein Donor)	false
C1'	CG	LEU- 214	4.24	0	Hydrophobic	false
C5'	CG	ARG- 215	3.51	0	Hydrophobic	false
C1'	CD1	LEU- 218	3.94	0	Hydrophobic	false
N3	O	HOH- 435	2.91	179.97	H-Bond (Protein Donor)	false
