scPDB - 1n77 entry

Protein Data Bank Entry:

PDB ID : 1n77

Resolution :2.400 Å

Experimental Method : X-ray

Deposition Date : 2002-11-13

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Glutamate--tRNA ligase
ID:	SYE_THET8
AC:	P27000
Organism:	Thermus thermophilus
Reign:	Bacteria
TaxID:	300852
EC Number:	6.1.1.17

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	24.686
Number of residues:	34
Including
Standard Amino Acids:	34
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.779	587.250

% Hydrophobic	% Polar
39.66	60.34
According to VolSite

Ligand :

HET Code:	ATP
Formula:	C10H12N5O13P3
Molecular weight:	503.149 g/mol
DrugBank ID:	DB00171
Buried Surface Area:	55.06 %
Polar Surface area:	319.88 Å2

Number of
H-Bond Acceptors:	17
H-Bond Donors:	3
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	2
Rotatable Bonds:	8

Mass center Coordinates

X	Y	Z
37.0444	77.5048	55.0965

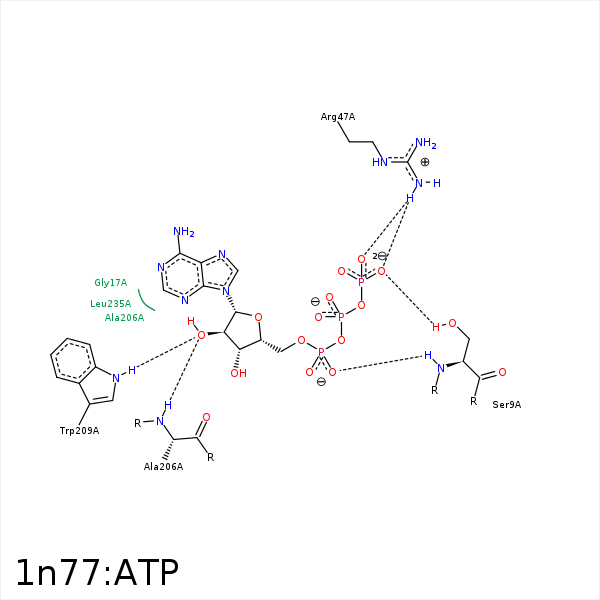

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3G	OG	SER- 9	3.13	133.91	H-Bond (Protein Donor)	false
O2A	N	SER- 9	2.99	147.56	H-Bond (Protein Donor)	false
O2A	OG1	THR- 18	3.47	154.7	H-Bond (Protein Donor)	false
C5'	CG2	THR- 18	3.79	0	Hydrophobic	false
C4'	CB	ILE- 21	4.01	0	Hydrophobic	false
C3'	CG2	ILE- 21	4.45	0	Hydrophobic	false
C1'	CG1	ILE- 21	3.4	0	Hydrophobic	false
O2G	NH2	ARG- 47	3.07	148.15	H-Bond (Protein Donor)	false
O2G	NH1	ARG- 47	3.26	139.33	H-Bond (Protein Donor)	false
O3G	NH2	ARG- 47	2.62	135.5	H-Bond (Protein Donor)	false
O2G	CZ	ARG- 47	3.6	0	Ionic (Protein Cationic)	false
O3G	CZ	ARG- 47	3.74	0	Ionic (Protein Cationic)	false
O2'	N	ALA- 206	2.72	153.1	H-Bond (Protein Donor)	false
C1'	CB	ALA- 206	3.7	0	Hydrophobic	false
O2'	NE1	TRP- 209	3.05	130.11	H-Bond (Protein Donor)	false
