scPDB - 1l4g entry

Protein Data Bank Entry:

PDB ID : 1l4g

Resolution :2.100 Å

Experimental Method : X-ray

Deposition Date : 2002-03-06

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
ID:	COBT_SALTY
AC:	Q05603
Organism:	Salmonella typhimurium
Reign:	Bacteria
TaxID:	99287
EC Number:	2.4.2.21

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	14.943
Number of residues:	45
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	1
Water Molecules:	7
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.732	364.500

% Hydrophobic	% Polar
47.22	52.78
According to VolSite

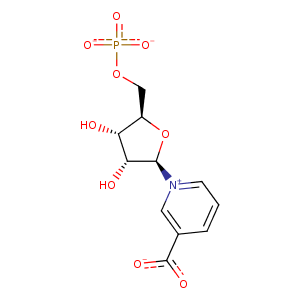

Ligand :

HET Code:	NCN
Formula:	C11H12NO9P
Molecular weight:	333.188 g/mol
DrugBank ID:	DB02382
Buried Surface Area:	75.52 %
Polar Surface area:	175.93 Å2

Number of
H-Bond Acceptors:	9
H-Bond Donors:	2
Rings:	2
Aromatic rings:	1
Anionic atoms:	3
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	5

Mass center Coordinates

X	Y	Z
55.4272	39.4629	7.88755

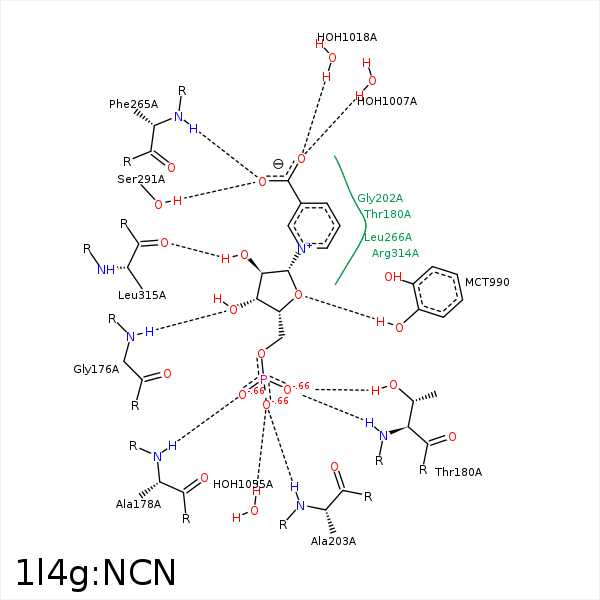

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3'	N	GLY- 176	3.18	169.93	H-Bond (Protein Donor)	false
O1P	N	THR- 180	3.25	155.68	H-Bond (Protein Donor)	false
O1P	OG1	THR- 180	2.59	160.21	H-Bond (Protein Donor)	false
C5'	CG2	THR- 180	3.55	0	Hydrophobic	false
C5	CG2	THR- 180	3.8	0	Hydrophobic	false
O2P	N	ALA- 203	2.82	172.42	H-Bond (Protein Donor)	false
O5'	N	ALA- 203	3.32	123.12	H-Bond (Protein Donor)	false
C4'	CB	ALA- 203	4.43	0	Hydrophobic	false
O7	N	PHE- 265	3.01	153.68	H-Bond (Protein Donor)	false
C2'	CD2	LEU- 266	4.33	0	Hydrophobic	false
C3	CD2	LEU- 266	3.79	0	Hydrophobic	false
O7	OG	SER- 291	2.54	148.86	H-Bond (Protein Donor)	false
C4	CB	ARG- 314	3.75	0	Hydrophobic	false
O2'	O	LEU- 315	3.1	162.11	H-Bond (Ligand Donor)	false
O8	O	HOH- 1007	2.79	179.97	H-Bond (Protein Donor)	false
O8	O	HOH- 1018	2.79	179.95	H-Bond (Protein Donor)	false
O2P	O	HOH- 1055	2.77	173.78	H-Bond (Protein Donor)	false
