sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
1.400 Å
X-ray
2002-01-15
| Name: | Retinol-binding protein 4 |
|---|---|
| ID: | RET4_BOVIN |
| AC: | P18902 |
| Organism: | Bos taurus |
| Reign: | Eukaryota |
| TaxID: | 9913 |
| EC Number: | / |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 26.941 |
|---|---|
| Number of residues: | 37 |
| Including | |
| Standard Amino Acids: | 34 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 3 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.905 | 550.125 |
| % Hydrophobic | % Polar |
|---|---|
| 74.85 | 25.15 |
| According to VolSite | |

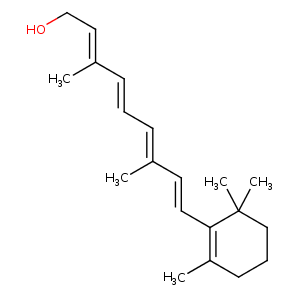

| HET Code: | RTL |
|---|---|
| Formula: | C20H30O |
| Molecular weight: | 286.452 g/mol |
| DrugBank ID: | DB00162 |
| Buried Surface Area: | 60.32 % |
| Polar Surface area: | 20.23 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 1 |
| H-Bond Donors: | 1 |
| Rings: | 1 |
| Aromatic rings: | 0 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 1 |
| Rotatable Bonds: | 5 |
| X | Y | Z |
|---|---|---|
| 33.609 | 19.89 | 49.7219 |

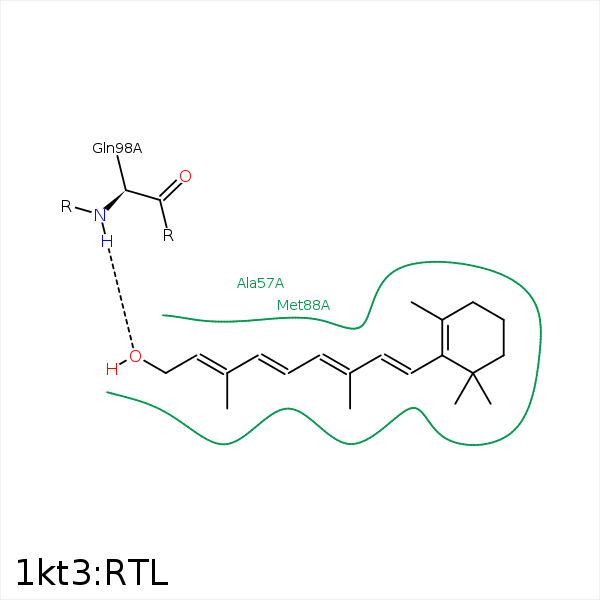

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C15 | CD1 | LEU- 35 | 4.32 | 0 | Hydrophobic |
| C20 | CB | LEU- 35 | 3.98 | 0 | Hydrophobic |
| C19 | CE1 | PHE- 36 | 4.35 | 0 | Hydrophobic |
| C3 | CB | ALA- 43 | 4.45 | 0 | Hydrophobic |
| C2 | CZ | PHE- 45 | 4.26 | 0 | Hydrophobic |
| C4 | CB | ALA- 55 | 4.14 | 0 | Hydrophobic |
| C3 | CB | ALA- 57 | 4.35 | 0 | Hydrophobic |
| C15 | CG2 | VAL- 61 | 4.21 | 0 | Hydrophobic |
| C18 | CB | MET- 73 | 4.48 | 0 | Hydrophobic |
| C2 | SD | MET- 88 | 4.49 | 0 | Hydrophobic |
| C4 | SD | MET- 88 | 4.16 | 0 | Hydrophobic |
| C16 | CE | MET- 88 | 4.43 | 0 | Hydrophobic |
| C18 | SD | MET- 88 | 4.22 | 0 | Hydrophobic |
| C18 | CB | TYR- 90 | 3.98 | 0 | Hydrophobic |
| C19 | CE2 | TYR- 90 | 4.2 | 0 | Hydrophobic |
| C15 | CD2 | LEU- 97 | 4.29 | 0 | Hydrophobic |
| C15 | CB | GLN- 98 | 4.4 | 0 | Hydrophobic |
| C20 | CB | GLN- 98 | 4 | 0 | Hydrophobic |
| O1 | N | GLN- 98 | 3.01 | 145.55 | H-Bond (Protein Donor) |
| C16 | CE2 | TYR- 133 | 4.45 | 0 | Hydrophobic |
| C16 | CE2 | PHE- 135 | 4.17 | 0 | Hydrophobic |
| C17 | CE2 | PHE- 135 | 3.92 | 0 | Hydrophobic |
