scPDB - 1kl2 entry

Protein Data Bank Entry:

PDB ID : 1kl2

Resolution :2.700 Å

Experimental Method : X-ray

Deposition Date : 2001-12-11

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Serine hydroxymethyltransferase
ID:	Q7SIB6_GEOSE
AC:	Q7SIB6
Organism:	Geobacillus stearothermophilus
Reign:	Bacteria
TaxID:	1422
EC Number:	/

Chains:

Chain Name:	Percentage of Residues within binding site
A	71 %
B	29 %

Ligand binding site composition:

B-Factor:	33.190
Number of residues:	33
Including
Standard Amino Acids:	33
Non Standard Amino Acids:	0
Water Molecules:	0
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.270	641.250

% Hydrophobic	% Polar
56.32	43.68
According to VolSite

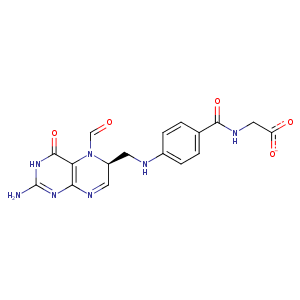

Ligand :

HET Code:	FON
Formula:	C20H21N7O7
Molecular weight:	471.423 g/mol
DrugBank ID:	DB03256
Buried Surface Area:	57.43 %
Polar Surface area:	221.2 Å2

Number of
H-Bond Acceptors:	12
H-Bond Donors:	5
Rings:	3
Aromatic rings:	1
Anionic atoms:	2
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	9

Mass center Coordinates

X	Y	Z
22.8001	-6.31169	18.0209

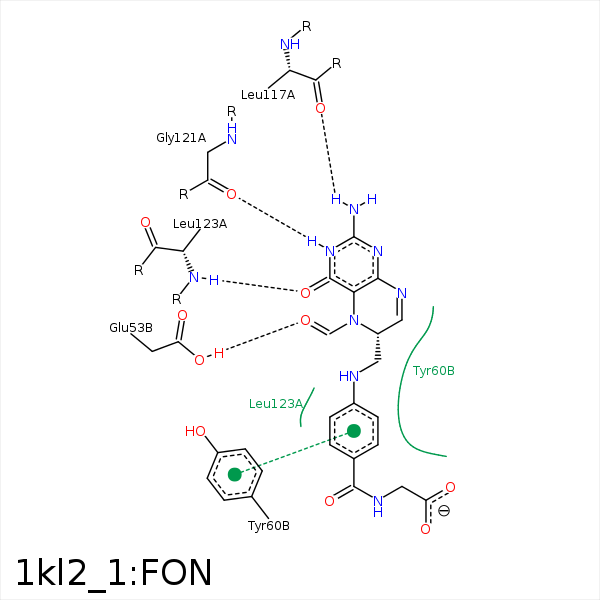

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O3	OE2	GLU- 53	2.61	150.1	H-Bond (Protein Donor)	false
C9	CB	TYR- 60	4.17	0	Hydrophobic	false
C13	CB	TYR- 60	4.12	0	Hydrophobic	false
C9	CZ	TYR- 61	4.39	0	Hydrophobic	false
NA2	O	LEU- 117	3	121.33	H-Bond (Ligand Donor)	false
NA2	O	GLY- 121	3.37	139.33	H-Bond (Ligand Donor)	false
N3	O	GLY- 121	2.89	165.41	H-Bond (Ligand Donor)	false
O4	N	LEU- 123	2.88	145.93	H-Bond (Protein Donor)	false
C13	CZ	PHE- 251	3.39	0	Hydrophobic	false
