sc-PDB

List of CHEMBLId :

This value allows a number of roughly comparable measures of half-maximal response concentration/potency/affinity to be compared on a negative logarithmic scale (e.g., an IC50 measurement of 1nM would have a pChEMBL value of 9).

Uniprot Annotation

Name:	cAMP-activated global transcriptional regulator CRP
ID:	CRP_ECOLI
AC:	P0ACJ8
Organism:	Escherichia coli
Reign:	Bacteria
TaxID:	83333
EC Number:	/

---

Chains:

Chain Name:	Percentage of Residues within binding site
A	13 %
B	87 %

---

Ligand binding site composition:

B-Factor:	21.757
Number of residues:	32
Including
Standard Amino Acids:	30
Non Standard Amino Acids:	0
Water Molecules:	2
Cofactors:
Metals:

---

Cavity properties

Ligandability	Volume (Å3)
0.921	394.875

% Hydrophobic	% Polar
58.97	41.03
According to VolSite

HET Code:	CMP
Formula:	C10H11N5O6P
Molecular weight:	328.198 g/mol
DrugBank ID:	DB02527
Buried Surface Area:	78.52 %
Polar Surface area:	167.48 Å2

Number of
H-Bond Acceptors:	10
H-Bond Donors:	2
Rings:	4
Aromatic rings:	2
Anionic atoms:	1
Cationic atoms:	0
Rule of Five Violation:	1
Rotatable Bonds:	1

---

Mass center Coordinates

X	Y	Z
24.4541	6.48077	42.9031

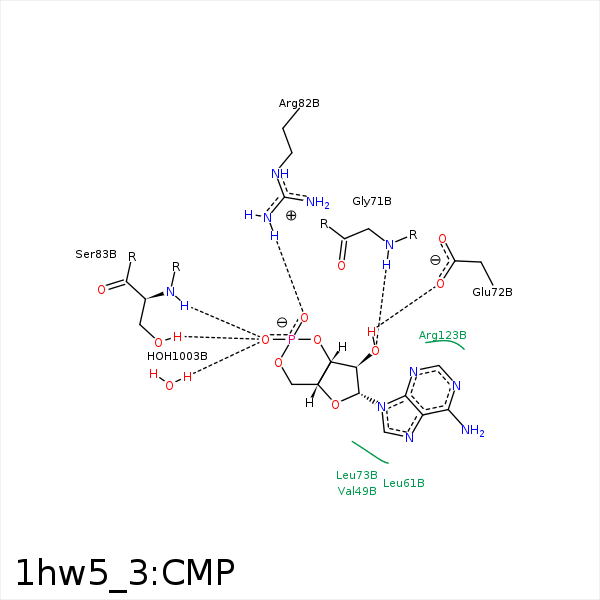

• 2D View
• 3D View
