scPDB - 1gnw entry

Protein Data Bank Entry:

PDB ID : 1gnw

Resolution :2.200 Å

Experimental Method : X-ray

Deposition Date : 1996-09-15

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Glutathione S-transferase F2
ID:	GSTF2_ARATH
AC:	P46422
Organism:	Arabidopsis thaliana
Reign:	Eukaryota
TaxID:	3702
EC Number:	2.5.1.18

Chains:

Chain Name:	Percentage of Residues within binding site
A	90 %
B	10 %

Ligand binding site composition:

B-Factor:	11.641
Number of residues:	34
Including
Standard Amino Acids:	31
Non Standard Amino Acids:	1
Water Molecules:	2
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
0.846	732.375

% Hydrophobic	% Polar
50.23	49.77
According to VolSite

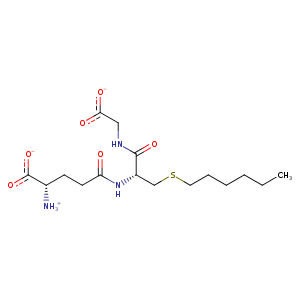

Ligand :

HET Code:	GTX
Formula:	C16H28N3O6S
Molecular weight:	390.475 g/mol
DrugBank ID:	-
Buried Surface Area:	44.58 %
Polar Surface area:	191.4 Å2

Number of
H-Bond Acceptors:	7
H-Bond Donors:	3
Rings:	0
Aromatic rings:	0
Anionic atoms:	2
Cationic atoms:	1
Rule of Five Violation:	0
Rotatable Bonds:	15

Mass center Coordinates

X	Y	Z
23.9481	56.9614	48.8637

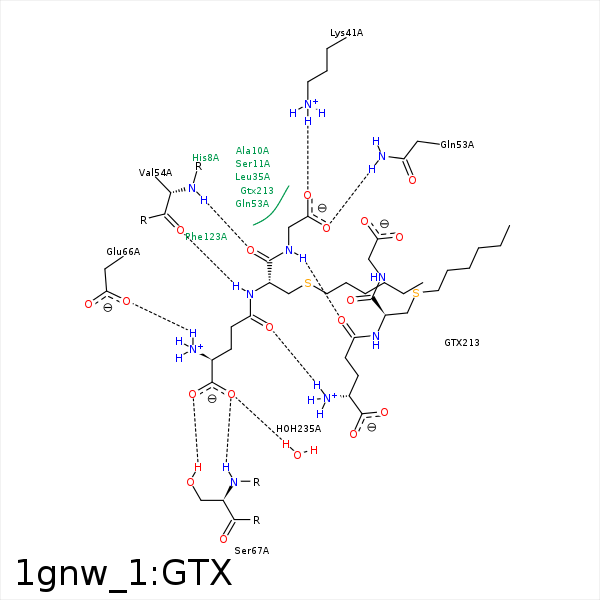

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
C5S	CB	ALA- 10	4.17	0	Hydrophobic	false
CB2	CB	SER- 11	4.1	0	Hydrophobic	false
C1S	CB	SER- 11	3.96	0	Hydrophobic	false
CG1	CB	ALA- 13	3.95	0	Hydrophobic	false
SG2	CD1	LEU- 35	3.9	0	Hydrophobic	false
C2S	CD1	LEU- 35	3.4	0	Hydrophobic	false
O32	NZ	LYS- 41	2.7	144.44	H-Bond (Protein Donor)	false
O32	NZ	LYS- 41	2.7	0	Ionic (Protein Cationic)	false
CG1	CB	GLN- 53	4.16	0	Hydrophobic	false
O31	NE2	GLN- 53	3.17	171.15	H-Bond (Protein Donor)	false
N2	O	VAL- 54	3.04	155.05	H-Bond (Ligand Donor)	false
O2	N	VAL- 54	3.17	156.96	H-Bond (Protein Donor)	false
CB2	CG2	VAL- 54	3.84	0	Hydrophobic	false
N1	OE2	GLU- 66	2.78	152.91	H-Bond (Ligand Donor)	false
N1	OE2	GLU- 66	2.78	0	Ionic (Ligand Cationic)	false
O11	N	SER- 67	3.03	173.25	H-Bond (Protein Donor)	false
O12	OG	SER- 67	2.75	151.3	H-Bond (Protein Donor)	false
C5S	CD2	PHE- 123	4.33	0	Hydrophobic	false
C6S	CD1	ILE- 126	4.18	0	Hydrophobic	false
O11	O	HOH- 235	2.73	179.94	H-Bond (Protein Donor)	false
