sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
2.500 Å
X-ray
2000-08-09
| Name: | Gag-Pol polyprotein |
|---|---|
| ID: | POL_HV1H2 |
| AC: | P04585 |
| Organism: | Human immunodeficiency virus type 1 group M subtype B |
| Reign: | Viruses |
| TaxID: | 11706 |
| EC Number: | 2.7.7.49 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 97 % |
| B | 3 % |
| B-Factor: | 57.377 |
|---|---|
| Number of residues: | 29 |
| Including | |
| Standard Amino Acids: | 29 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 0 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.172 | 796.500 |
| % Hydrophobic | % Polar |
|---|---|
| 62.29 | 37.71 |
| According to VolSite | |

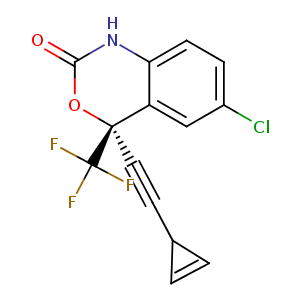

| HET Code: | EFZ |
|---|---|
| Formula: | C14H9ClF3NO2 |
| Molecular weight: | 315.675 g/mol |
| DrugBank ID: | DB00625 |
| Buried Surface Area: | 81.36 % |
| Polar Surface area: | 38.33 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 2 |
| H-Bond Donors: | 1 |
| Rings: | 3 |
| Aromatic rings: | 1 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 3 |
| X | Y | Z |
|---|---|---|
| 1.46519 | -36.8714 | 20.5122 |

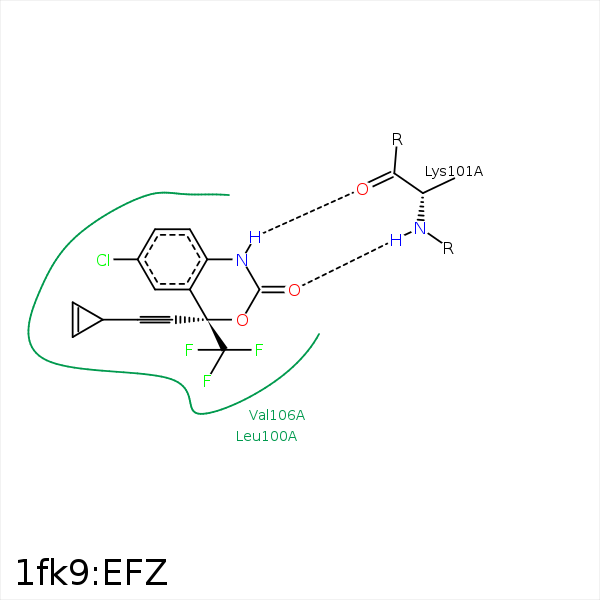

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C6 | CD1 | LEU- 100 | 3.98 | 0 | Hydrophobic |
| C8 | CD1 | LEU- 100 | 4.07 | 0 | Hydrophobic |
| O1 | N | LYS- 101 | 3.17 | 167.3 | H-Bond (Protein Donor) |
| N | O | LYS- 101 | 2.75 | 131.67 | H-Bond (Ligand Donor) |
| F3 | CG | LYS- 103 | 3.81 | 0 | Hydrophobic |
| C2 | CG | LYS- 103 | 3.72 | 0 | Hydrophobic |
| F2 | CG2 | VAL- 106 | 4.06 | 0 | Hydrophobic |
| C5 | CG2 | VAL- 106 | 4.18 | 0 | Hydrophobic |
| C3 | CG1 | VAL- 106 | 3.73 | 0 | Hydrophobic |
| F1 | CG1 | VAL- 179 | 3.77 | 0 | Hydrophobic |
| F1 | CB | TYR- 181 | 4.2 | 0 | Hydrophobic |
| C10 | CD1 | TYR- 181 | 3.49 | 0 | Hydrophobic |
| C9 | CB | TYR- 181 | 3.96 | 0 | Hydrophobic |
| C10 | CG | TYR- 188 | 3.57 | 0 | Hydrophobic |
| F2 | CB | TYR- 188 | 3.39 | 0 | Hydrophobic |
| C9 | CB | TYR- 188 | 3.73 | 0 | Hydrophobic |
| CL | CD2 | PHE- 227 | 3.82 | 0 | Hydrophobic |
| CL | CB | LEU- 234 | 3.75 | 0 | Hydrophobic |
