sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
2.400 Å
X-ray
2000-06-14
| Min | Mean | Median | Standard Deviation | Max | Count | |
|---|---|---|---|---|---|---|
| pChEMBL: | 8.710 | 9.100 | 9.170 | 0.200 | 9.400 | 11 |
| Name: | Androgen receptor |
|---|---|
| ID: | ANDR_HUMAN |
| AC: | P10275 |
| Organism: | Homo sapiens |
| Reign: | Eukaryota |
| TaxID: | 9606 |
| EC Number: | / |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 44.760 |
|---|---|
| Number of residues: | 36 |
| Including | |
| Standard Amino Acids: | 35 |
| Non Standard Amino Acids: | 0 |
| Water Molecules: | 1 |
| Cofactors: | |
| Metals: | |
| Ligandability | Volume (Å3) |
|---|---|
| 1.492 | 266.625 |
| % Hydrophobic | % Polar |
|---|---|
| 74.68 | 25.32 |
| According to VolSite | |

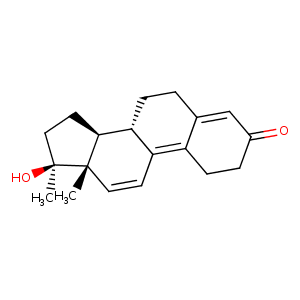

| HET Code: | R18 |
|---|---|
| Formula: | C19H24O2 |
| Molecular weight: | 284.393 g/mol |
| DrugBank ID: | DB02998 |
| Buried Surface Area: | 81.95 % |
| Polar Surface area: | 37.29 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 2 |
| H-Bond Donors: | 1 |
| Rings: | 4 |
| Aromatic rings: | 0 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 0 |
| X | Y | Z |
|---|---|---|
| 0.266524 | 31.235 | 4.47043 |

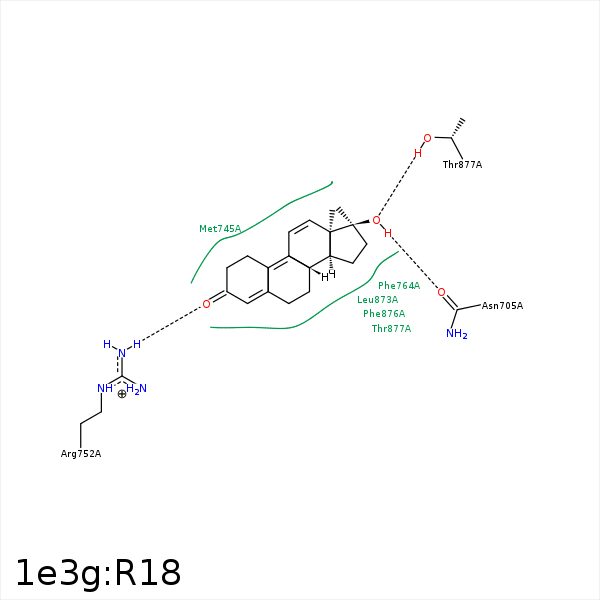

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| C27 | CD2 | LEU- 701 | 3.73 | 0 | Hydrophobic |
| C1 | CD2 | LEU- 704 | 4.09 | 0 | Hydrophobic |
| C27 | CB | LEU- 704 | 3.83 | 0 | Hydrophobic |
| O97 | OD1 | ASN- 705 | 2.79 | 161.59 | H-Bond (Ligand Donor) |
| C1 | CD2 | LEU- 707 | 3.98 | 0 | Hydrophobic |
| C18 | CE | MET- 742 | 3.91 | 0 | Hydrophobic |
| C8 | SD | MET- 742 | 4.1 | 0 | Hydrophobic |
| C1 | CE | MET- 745 | 4.06 | 0 | Hydrophobic |
| C2 | SD | MET- 745 | 3.63 | 0 | Hydrophobic |
| C6 | CE | MET- 745 | 4.18 | 0 | Hydrophobic |
| C8 | CE | MET- 745 | 4.29 | 0 | Hydrophobic |
| C6 | CG2 | VAL- 746 | 4.06 | 0 | Hydrophobic |
| O83 | NH2 | ARG- 752 | 2.85 | 137.08 | H-Bond (Protein Donor) |
| C1 | CD1 | PHE- 764 | 4.44 | 0 | Hydrophobic |
| C6 | CE1 | PHE- 764 | 4.48 | 0 | Hydrophobic |
| C27 | SD | MET- 780 | 4.26 | 0 | Hydrophobic |
| C15 | SD | MET- 780 | 4.15 | 0 | Hydrophobic |
| C6 | SD | MET- 787 | 4.39 | 0 | Hydrophobic |
| C6 | CD1 | LEU- 873 | 4.06 | 0 | Hydrophobic |
| C16 | CD1 | PHE- 876 | 3.8 | 0 | Hydrophobic |
| C18 | CB | THR- 877 | 3.82 | 0 | Hydrophobic |
| C16 | CB | THR- 877 | 3.49 | 0 | Hydrophobic |
| O97 | OG1 | THR- 877 | 2.87 | 173.2 | H-Bond (Protein Donor) |
| C27 | CD2 | LEU- 880 | 4.15 | 0 | Hydrophobic |
| C18 | CE | MET- 895 | 3.85 | 0 | Hydrophobic |
