sc-PDB
An Annotated Database of Druggable Binding Sites from the Protein DataBank
An Annotated Database of Druggable Binding Sites from the Protein DataBank
1.800 Å
X-ray
1999-11-24
| Min | Mean | Median | Standard Deviation | Max | Count | |
|---|---|---|---|---|---|---|
| pChEMBL: | 5.050 | 5.050 | 5.050 | 0.000 | 5.050 | 1 |
| Name: | Adenosine kinase |
|---|---|
| ID: | ADK_TOXGO |
| AC: | Q9TVW2 |
| Organism: | Toxoplasma gondii |
| Reign: | Eukaryota |
| TaxID: | 5811 |
| EC Number: | 2.7.1.20 |
| Chain Name: | Percentage of Residues within binding site |
|---|---|
| A | 100 % |
| B-Factor: | 20.829 |
|---|---|
| Number of residues: | 32 |
| Including | |
| Standard Amino Acids: | 28 |
| Non Standard Amino Acids: | 1 |
| Water Molecules: | 3 |
| Cofactors: | |
| Metals: | CL |
| Ligandability | Volume (Å3) |
|---|---|
| 0.572 | 499.500 |
| % Hydrophobic | % Polar |
|---|---|
| 37.84 | 62.16 |
| According to VolSite | |

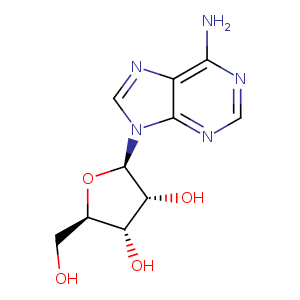

| HET Code: | ADN |
|---|---|
| Formula: | C10H13N5O4 |
| Molecular weight: | 267.241 g/mol |
| DrugBank ID: | DB00640 |
| Buried Surface Area: | 51.2 % |
| Polar Surface area: | 139.54 Å2 |
| Number of | |
|---|---|
| H-Bond Acceptors: | 8 |
| H-Bond Donors: | 4 |
| Rings: | 3 |
| Aromatic rings: | 2 |
| Anionic atoms: | 0 |
| Cationic atoms: | 0 |
| Rule of Five Violation: | 0 |
| Rotatable Bonds: | 2 |
| X | Y | Z |
|---|---|---|
| -0.757316 | 9.73705 | 16.1793 |

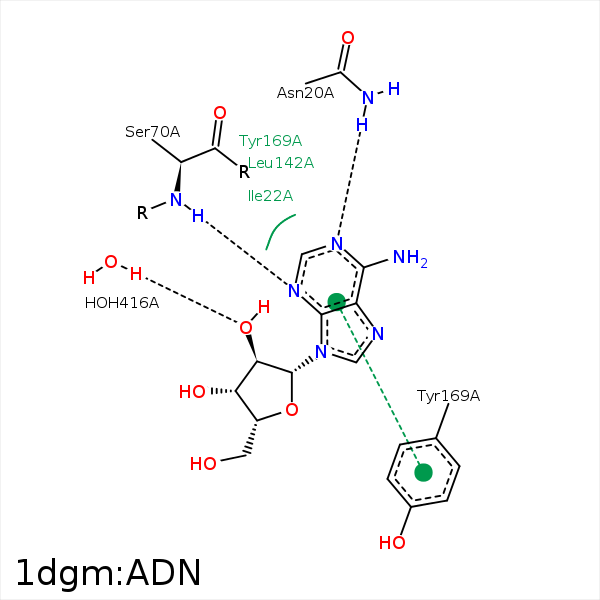

Image generated by PoseView
Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand
| Ligand | Protein | Interaction | |||
|---|---|---|---|---|---|
| Atom | Atom | Residue | Distance (Å) | Angle (°) | Type |
| N1 | ND2 | ASN- 20 | 2.96 | 160.13 | H-Bond (Protein Donor) |
| C1' | CG1 | ILE- 22 | 4.24 | 0 | Hydrophobic |
| N3 | N | SER- 70 | 3.11 | 144.1 | H-Bond (Protein Donor) |
| O2' | O | HOH- 416 | 2.75 | 179.96 | H-Bond (Protein Donor) |
