scPDB - 1bq6 entry

Protein Data Bank Entry:

PDB ID : 1bq6

Resolution :1.560 Å

Experimental Method : X-ray

Deposition Date : 1998-08-21

Activity from ChEMBL: What is pChEMBL ?

	Min	Mean	Median	Standard Deviation	Max	Count
pChEMBL:

List of CHEMBLId :

Binding Site :

Uniprot Annotation

Name:	Chalcone synthase 2
ID:	CHS2_MEDSA
AC:	P30074
Organism:	Medicago sativa
Reign:	Eukaryota
TaxID:	3879
EC Number:	2.3.1.74

Chains:

Chain Name:	Percentage of Residues within binding site
A	100 %

Ligand binding site composition:

B-Factor:	20.910
Number of residues:	39
Including
Standard Amino Acids:	37
Non Standard Amino Acids:	1
Water Molecules:	1
Cofactors:
Metals:

Cavity properties

Ligandability	Volume (Å3)
1.537	455.625

% Hydrophobic	% Polar
71.11	28.89
According to VolSite

Ligand :

HET Code:	COA
Formula:	C21H32N7O16P3S
Molecular weight:	763.502 g/mol
DrugBank ID:	DB01992
Buried Surface Area:	52.03 %
Polar Surface area:	426.11 Å2

Number of
H-Bond Acceptors:	21
H-Bond Donors:	6
Rings:	3
Aromatic rings:	2
Anionic atoms:	4
Cationic atoms:	0
Rule of Five Violation:	3
Rotatable Bonds:	18

Mass center Coordinates

X	Y	Z
6.71596	53.8876	47.6677

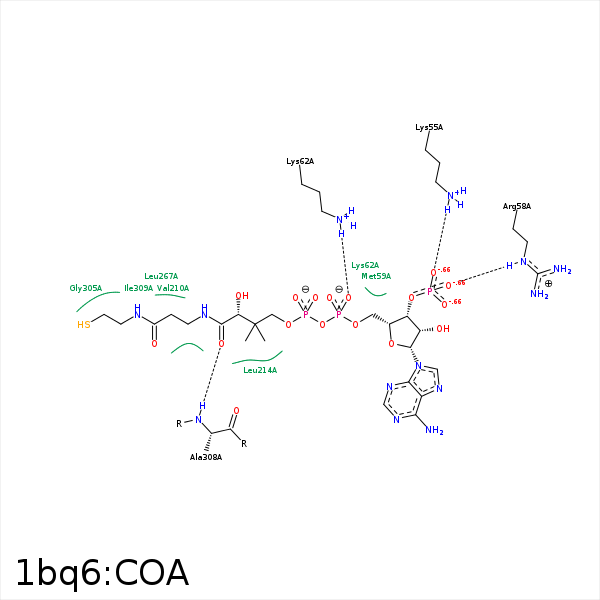

Binding mode :

What is Poseview ?

2D View
3D View

Image generated by PoseView

Protein

Binding Site

Ligand

Interaction pattern

hydrophobic (CA)

aromatic (CZ)

hydrogen bond acceptor (O)

hydrogen bond acceptor/donor (OG)

hydrogen bond donor (N)

positively ionized (NZ)

negatively ionized (OD1)

metal (ZN)

Legend:

Represent the protein/ligand binding mode, centered on the ligand
Dashed lines represents hydrogen bonds and metal interactions
Green residue labels for amino acids with hydrophobic contacts (green lines) to the ligand

Image generated using PoseView by BioSolveIT

Ligand	Protein		Interaction
Atom	Atom	Residue	Distance (Å)	Angle (°)	Type
O9A	NZ	LYS- 55	2.65	161.38	H-Bond (Protein Donor)	false
O9A	NZ	LYS- 55	2.65	0	Ionic (Protein Cationic)	false
O8A	NH2	ARG- 58	3.34	125.18	H-Bond (Protein Donor)	false
O8A	NE	ARG- 58	2.66	158.68	H-Bond (Protein Donor)	false
O8A	CZ	ARG- 58	3.38	0	Ionic (Protein Cationic)	false
C1B	CE	MET- 59	3.31	0	Hydrophobic	false
C4B	CG	MET- 59	3.27	0	Hydrophobic	false
O2A	NZ	LYS- 62	3.03	161.47	H-Bond (Protein Donor)	false
O2A	NZ	LYS- 62	3.03	0	Ionic (Protein Cationic)	false
CCP	CB	LYS- 62	3.95	0	Hydrophobic	false
CDP	CB	LYS- 62	4.46	0	Hydrophobic	false
C1B	CG2	VAL- 210	4.02	0	Hydrophobic	false
CEP	CG1	VAL- 210	4.12	0	Hydrophobic	false
CDP	CD2	LEU- 214	4.42	0	Hydrophobic	false
S1P	CZ	PHE- 215	3.92	0	Hydrophobic	false
S1P	CG2	ILE- 254	3.75	0	Hydrophobic	false
C2P	CZ	PHE- 265	3.85	0	Hydrophobic	false
S1P	CE1	PHE- 265	3.61	0	Hydrophobic	false
S1P	CD2	LEU- 267	4.32	0	Hydrophobic	false
C6P	CB	VAL- 271	4.44	0	Hydrophobic	false
C6P	CG	PRO- 272	3.89	0	Hydrophobic	false
CDP	CG	PRO- 307	3.67	0	Hydrophobic	false
CAP	CB	ALA- 308	3.87	0	Hydrophobic	false
O9P	N	ALA- 308	3.16	167.54	H-Bond (Protein Donor)	false
